Key Features

No Predrilling The Type-17 point starts fast and drives cleanly into wood, so you can install connector screws without stopping to predrill. That saves time and helps reduce splitting in the material. Built for Connectors This Simpson Strong-Tie heavy-duty connector screw uses a 3/8 inch hex head with an integrated washer, giving you solid bearing at the connector and positive drive engagement with less cam-out. Jobsite Corrosion Defense The double-barrier coating adds corrosion resistance for exterior wood and connector work. If you are building outdoors or around treated lumber connections, that matters.

Overview

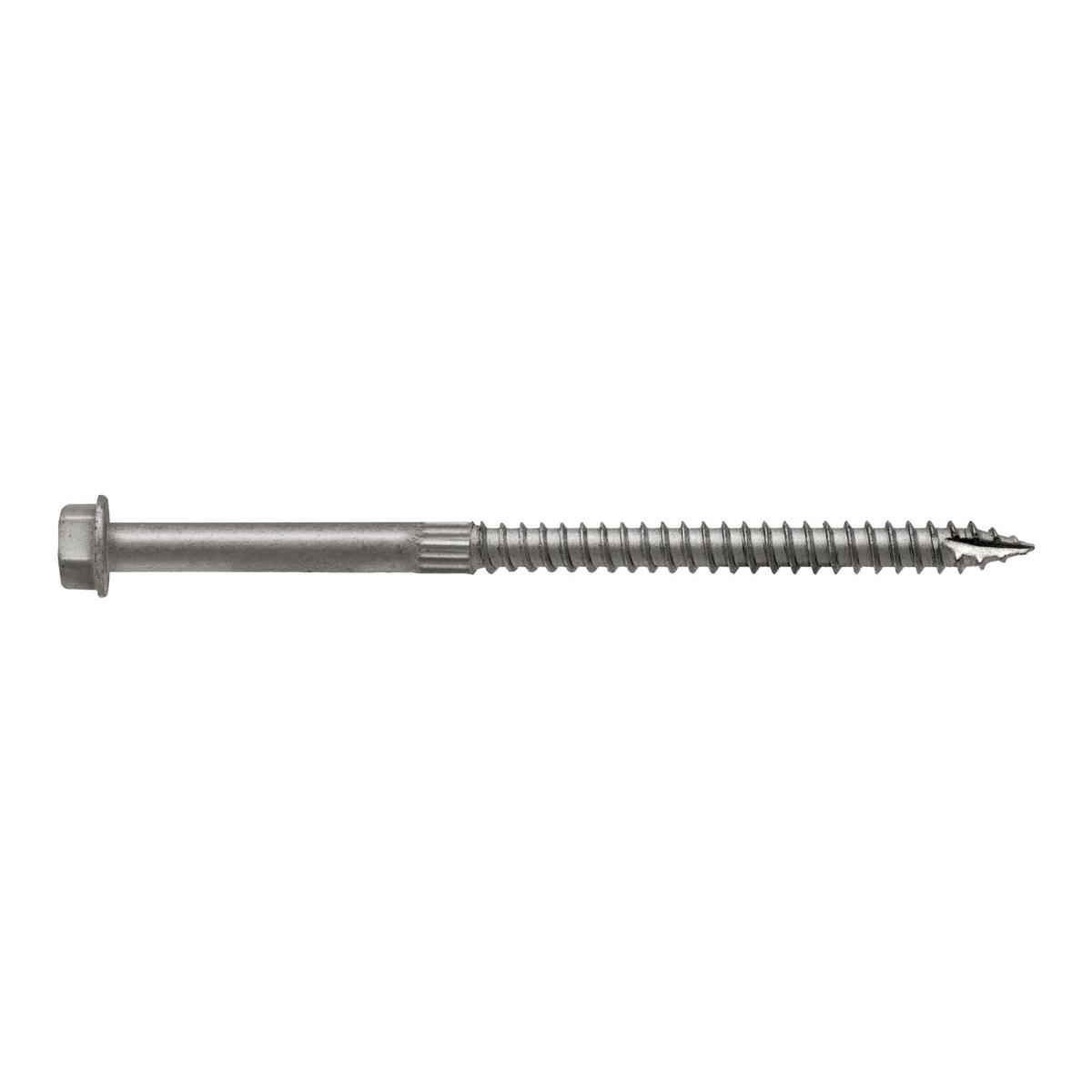

The Simpson Strong-Tie SDS25412 Strong-Drive SDS Heavy-Duty Connector Screw is a high-strength structural wood screw made for connector installations and heavy wood fastening. This is a heavy-duty connector screw designed for installing Simpson Strong-Tie connectors and handling demanding wood-to-wood fastening jobs. Model Number: SDS25412. For buyers who need a fastener that installs quickly, holds hard, and cuts down on extra steps, this is the kind of screw that earns its keep on the job.

What separates this screw from basic wood screws is how it goes in and what it is built to do once installed. The Type-17 point is there for a reason: it starts easier in wood and helps reduce splitting, which means less prep and smoother installs. Simpson also calls out no predrilling for typical use, so you can move faster when installing hardware, structural connectors, or other heavy-duty assemblies. On repetitive fastening work, that time savings adds up fast.

The drive and head design are just as important. This SDS25412 uses a 3/8 inch hex drive and a hex head with a 0.500 inch integrated washer. In plain terms, that gives you strong bit engagement and a broader bearing surface at the connection point. That matters when you are seating connectors cleanly and want steady pull-down without fighting stripped recesses or weak head contact. It is a practical setup for installers who would rather keep working than babysit every fastener.

The thread design is meant for real structural fastening, not light trim work. Serrated threads help the screw cut and drive more efficiently, while the 4-1/2 inch overall length and 2-3/4 inch thread length give it the reach needed for thicker assemblies and connector applications. This specific SDS25412 version uses Simpson’s double-barrier coating, which gives it corrosion resistance for exterior wood screw use where exposure is part of the job.

From a jobsite standpoint, this screw is straightforward to install with common equipment, but the right setup matters. Simpson recommends a low-speed 1/2 inch drill with a 3/8 inch hex driver. That tells you exactly how the product is meant to be used: controlled driving, strong torque transfer, and consistent seating in heavy framing or connector hardware. If you are installing structural connectors, concealed ties, joist hardware, or similar assemblies, that practical guidance is worth paying attention to.

Compatibility is another reason pros buy SDS screws instead of grabbing generic lag alternatives. This fastener is intended for heavy-duty Simpson Strong-Tie connectors, and the head is stamped for identification after installation. That helps during inspection, punch lists, and service work because the installed fastener is easier to verify. Simpson also lists replacement driver bit BITHEXR38-R1, which is useful if you keep dedicated hardware drivers in rotation.

Who is this for? Carpenters, deck builders, framers, remodelers, and contractors installing structural hardware in wood. It also makes sense for serious DIY users working on code-conscious outdoor structures or reinforcement projects where a standard wood screw is not enough. If you need a structural screw for connector fastening, exterior wood assemblies, or engineered wood applications, the Simpson Strong-Tie SDS25412 Strong-Drive SDS Heavy-Duty Connector Screw is built for exactly that lane.

Faster Structural Fastening

When you are fastening hardware or structural members, the big win here is fewer extra steps. The point starts cleanly, the hex head drives positively, and the screw is built to go in without typical predrilling.

• Type-17 point helps the screw start easier in wood
• Simpson recommends a low-speed 1/2 inch drill with a 3/8 inch hex driver

Made for Connector Hardware

This screw is not pretending to be a structural fastener. It is specifically aimed at connector installs, which is why the head, washer, and drive style are all set up for that kind of work.

• 3/8 inch hex drive gives solid engagement during installation
• Hex head uses a 0.500 inch integrated washer for better bearing at the connection

Built for Exterior Wood Work

For outdoor projects and exposed wood assemblies, coating matters. This SDS25412 version uses Simpson’s double-barrier coating, making it a better fit for exterior connector and wood fastening than plain interior-use screws.

• Double-barrier coating is used on this SDS25412 model
• Ideal for exterior wood screw applications where corrosion resistance matters

Cleaner Verification After Installation

Small detail, but a useful one: the head is stamped with the Simpson Strong-Tie mark and fastener length. That makes post-install identification easier when someone needs to confirm what was used.

• Stamped head helps with fastener identification after installation
• Useful for inspection, maintenance, and matching existing hardware later

What’s in the Box

• (800) Simpson Strong-Tie SDS25412 Strong-Drive SDS Heavy-Duty Connector Screws

Replacement driver bit BITHEXR38-R1 is available separately.

Key Specifications

Compatibility

Connector Use Designed for heavy-duty Simpson Strong-Tie connectors. Driver Interface Uses a 3/8 inch hex driver for installation. Replacement Driver Bit Replacement bit model: BITHEXR38-R1.

Built For

Carpentry Deck Building Framing General Contracting Remodeling Exterior Wood Fastening Connector Installation DIY / Hobbyist

Pro Tip

Run these with a low-speed 1/2 inch drill and a clean 3/8 inch hex driver instead of spinning them in too fast. You will get better control, cleaner seating at the connector, and less chance of overdriving the washer head.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie SDS25412 Strong-Drive SDS Heavy-Duty Connector Screw is the right answer when regular wood screws are out of their depth

This is the kind of structural fastener you buy when you want connector installs to go faster and look right when they are done.

• Who it’s for: Contractors, deck builders, framers, and serious DIY users installing structural hardware or heavy wood connections.
• Why it stands out: No-prep Type-17 starting point, hex head with integrated washer, and a design aimed specifically at Simpson connector work.
• Worth knowing: This SDS25412 variant is the bulk pack quantity, so it makes the most sense if you are doing repeated installs, not just one or two repairs.

Common Questions

• Does this screw require predrilling? Simpson states the Type-17 point enables easy driving with no predrilling.
• What tool is recommended for installation? Simpson recommends a low-speed 1/2 inch drill with a 3/8 inch hex driver.
• What kind of applications is this screw intended for? It is intended for heavy-duty Simpson Strong-Tie connector installations and can also be used for wood-to-wood and engineered wood applications within the SDS product family description.
• What coating does the SDS25412 use? This model uses Simpson’s double-barrier coating.
