Description

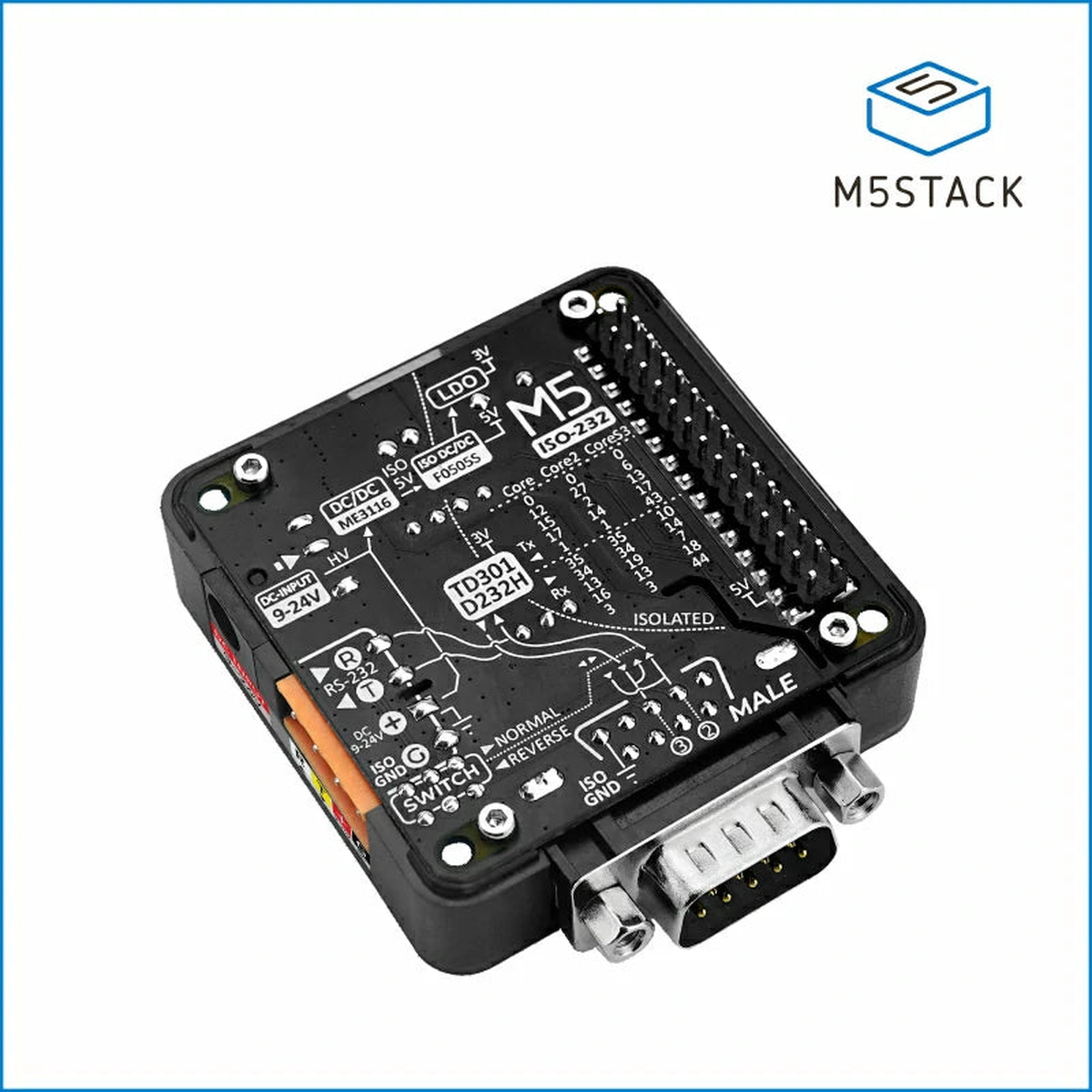

Module13.2 RS232M is an isolated RS232 serial communication expansion module. It uses the TD301D232H serial port conversion chip + male DB9 interface to achieve interface conversion between RS232 and TTL/CMOS logic level signals. The F0505S – 2WR3 DC/DC power module is used to provide electrical and noise isolation. The toggle switch and encoder switch allow for switching between straight-through or crossover DB9 signal lines and serial interface switching, meeting different connection requirements. The module has a built-in DC power input socket and corresponding DC-DC circuit, which can provide power to the entire device. This product is suitable for industrial automation, instrumentation, medical equipment, and communication equipment fields.

Features

• TD301D232H serial port chip, supports full-duplex, fast and reliable
• F0505S-2WR3 electrical and noise isolation
• Toggle switch and encoder switch for line sequence and GPIO switching
• Programming platforms: Arduino, UIFlow (updating)

Includes

• 1 Module13.2 RS232M
• 1 x HT3.96-4P terminal

Applications

• Industrial automation
• Instrumentation
• Medical equipment
• Communication equipment

Specifications

Learn and Documents

DOCUMENTS
