Product Specifications:

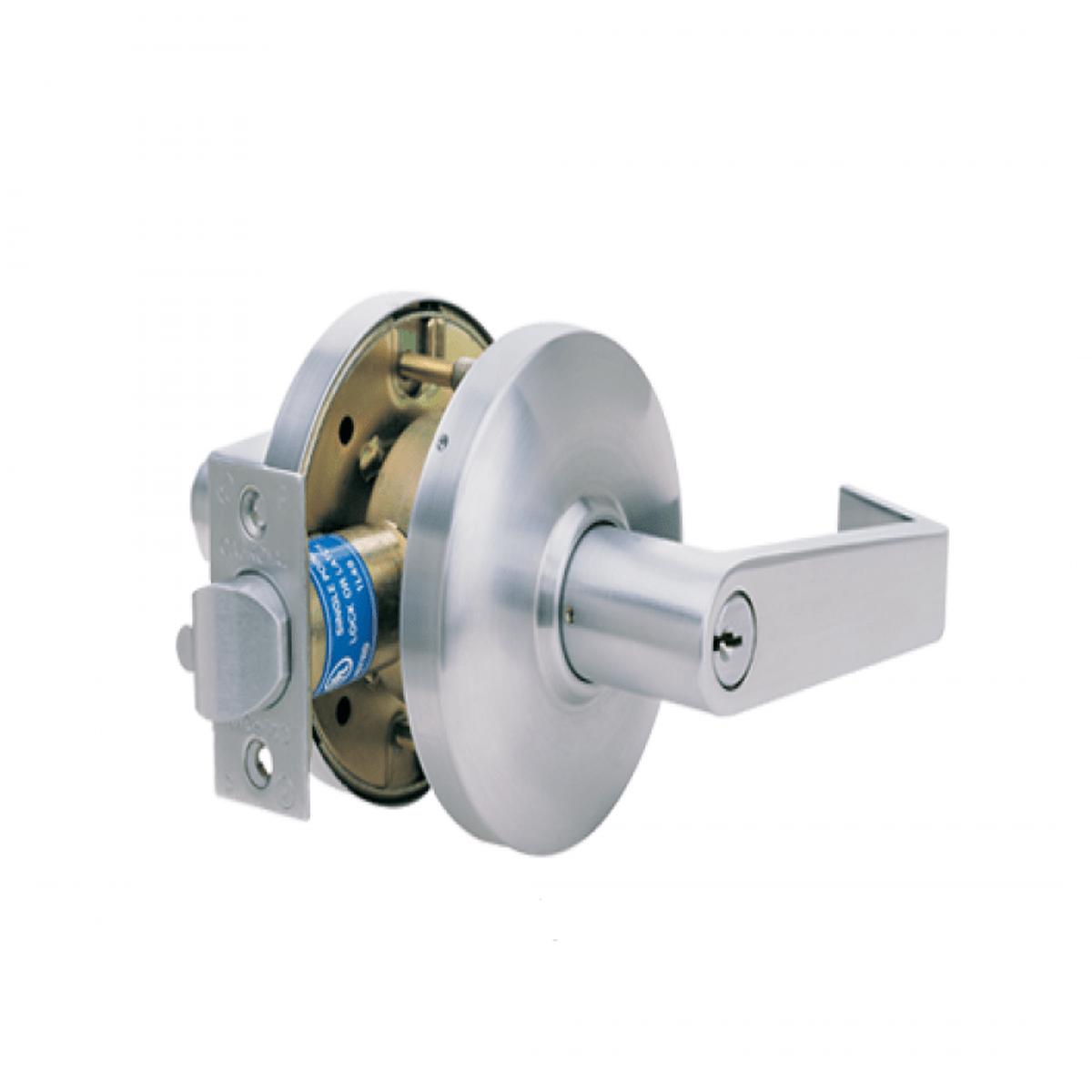

• Heavy Duty Cylindrical Entrance Leverset
• Genesys CGN Series Grade 1
• Function: Entrance/Office Lock – Turn/Push button locking. Pushing and turning button locks outside lever reuquiring use of key until button is manually locked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
• Key removable outside lever for fast re-keying
• Non-handed levers
• Concealed mounting screws
• Clutch mechanism
• Fixed thru bolt installation
• ANSI Standards: Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements.
• Cylinder & Keyway: 6 pin solid brass C keyway, Schlage E, Schlage C-K,
• Interchangeable Core: Not Available
• Clutch: Free turning handle in the lock position without retracting the latch, to deter breaking of handle
• Door Range: 1 3/8″ – 1 3/4″ thick
• Lever Size: Full length 4 3/4″ lever handle with 3/8″ return
• Latch Faceplate: Standard 2 1/4″ x 1 1/8″ for 2 3/4″ backset
• Strikes: ASA 1 1/4″ x 4 7/8″ standard
• Trim: Thru-bolted assembly through door with separate spring cage for each lever
• Housing: Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 diameter bore
• Meets ADA requirements Specially designed for Barrier Free Application Conforms with ANSI / BHMA A156.2, Series 4000, Grade 1 Requirements Exceeds 1,000,000 Cycles
• Template
• Installation Guide

Product Options:

• Finishes Available: Satin Chrome, Polished Brass, Oil Rubbed Bronze, Satin Nickel
• Backset: 2-3/4″ Inches (standard, brass with 1/2″ throw), 2-3/8″ Inches, 3-3/4″ Inches, 5″ Inches
